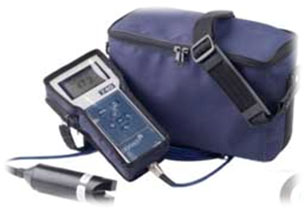

| PORTABLE TOTAL SUSPENDED SOLID (TSS) | ||||||||||||||||
| Type | : | PAR-740 | ||||||||||||||
| Product | : | UK | ||||||||||||||
| Fungsi | : | Alat ukur zat padat yang tersuspensi dalam air yang berupa | ||||||||||||||
| organik dan in-organik yang tertahan oleh saringan dengan | ||||||||||||||||
| ukuran particle maksimal 2µm | ||||||||||||||||
| SPESIFIKASI | ||||||||||||||||
| ● | Physical | Monitor | Sensor | |||||||||||||
| Dimensions | 224 x 106 x 39 mm | 45 mm Diameter, 155 mm long | ||||||||||||||
| Weight | 0.5 kg | 0.6 kg (inc 5 metres of cable) | ||||||||||||||
| Protection Class | IP65 | IP68 | ||||||||||||||
| Enclosure Material | ABS | Black Acetal Co-Polymer | ||||||||||||||
| Cable Entries | Plug for Sensor, Charger | |||||||||||||||
| Cable Size | 3 core, 5 mm OD Polyurethane coated cable | |||||||||||||||
| Cable Length | 5 metre standard, 100 metre maximum | |||||||||||||||
| Cable marking every 1 metre | ||||||||||||||||
| Service Requirements | No routine servicing | |||||||||||||||
| Will require cleaning after use | ||||||||||||||||
| ● | Environmental Data | |||||||||||||||
| Operating Temperature | Monitor : -20 to 60°C, sensor : 0 to 60°C | |||||||||||||||
| Storage Temperature | -20 to 60°C | |||||||||||||||
| Location | Portable | |||||||||||||||
| Power Supply | Universal Charger 90-264 VAC, UK, US, and EU Plug Styles | |||||||||||||||
| Optional car charger available | ||||||||||||||||
| ● | Measurement Details | |||||||||||||||
| Accuracy | ± 5% FSD on real sample | |||||||||||||||
| Repeatability | ± 1% FSD on real sample | |||||||||||||||
| Measurement Principle | Infrared Light Attenuation | |||||||||||||||
| Wavelength | 880 nm | |||||||||||||||
| Response Time | 0.5 seconds, damped by monitor | |||||||||||||||
|
Pressure Rating | 10 mWC | ||||||||||||||
| Flow Rate | Not effected by flowrate | |||||||||||||||
| Maximum Range | 0 – 20,000 mg/l | |||||||||||||||
| Minimum Range | 0 – 50 mg/l | |||||||||||||||
| ● | User Interface | |||||||||||||||
| Display | Graphical Display providing 4 1/2 Digit with 2 message lines | |||||||||||||||
| Setup | via 4 Button Membrane Keypad | |||||||||||||||
|
Units of Measurement | mg/l, g/l, ppm, NTU, FTU, %SS, User Defined | ||||||||||||||
TOTAL SUSPENDED SOLID
Harga :
CALL
Merk :
PAR
Pembelian Minimal :
1 Unit
Pengiriman :
14 hari sejak pembayaran
Lokasi :
DKI Jakarta - Jakarta Barat
Dilihat :
87 Kali
Update Terakhir :
24-10-2016 13:12
Dapatkan Spesifikasi Harga TOTAL SUSPENDED SOLID Produk Terbaik dari
PT. DUA BELAS BERSAUDARAA ALAT UJI AIR, UDARA, MAKANAN
