| A. | Spesifikasi | |||
| ▪ | RMS / peak measurement | : | Yes/No | |
| ▪ | Vibration Velocity | : | 10 - 1000 Hz | |
| ▪ | Accuracy Vibration | : | ± 5 % ± 2 Digits | |
| ▪ | Measuring data memory | : | 16000 values; USB interface; optional | |
| : | PC software for data and measuring point management | |||
| ▪ | Display | : | OLED graphical display; colored; 128 x 160 pixels | |
| ▪ | Power Supply | : | 3 x LR03 / HR03 / AAA batteries or NiMH accumulators; | |
| : | operating time 8 - 12 h; USB supply | |||
| ▪ | Temperature Range | : | -4 .. 140 °F, < 95 % relative humidity, no condensation | |
| ▪ | Dimenssion | : | 125 mm x 65 mm x 27 mm; 140 g with batteries | |
| and without sensor | ||||
| B. | Accelerometer | : | ||
| ▪ | Type | : | Piezoelectric shear accelerometer with low-power IEPE output; M12 connector; | |
| : | integral magnet, VMID read contact in base | |||
| ▪ | Normal Sensitive | : | 3,5 mV/ms | |
| ▪ | Transverse Sensitivity | : | < 5% | |
| ▪ | Dimenssion Weight | : | Ø 21; height 34 mm (without connector); 53 g | |
| ▪ | Sensor Cable | : | Coiled cable, stretched length approximately 1.6 m, Ø 4 mm | |
| : | digital; unique 16 character hexadecimal number, | |||
| : | readout by contact in sensor base; stainless steel housing Ø 25 mm, | |||
| : | heigt 15 mm; 45 g; attachment by two-component epoxy glue | |||
| ▪ | Standard accessories | : | Main Instrument VM-22 | |
| : | Vibration Sensor with spiral cable | |||
| : | USB Cable | |||
| : | Headphone adapter (VM-22) | |||
| : | Instruction Manual | |||
| : | Carrying case | |||
| : | PC software VM2x Measuremet Data Base | |||
| VMID measuring points | ||||

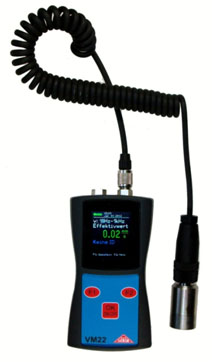

DIGITAL VIBRATION MACHINE METER
Harga :
CALL
Merk :
MMF
Pembelian Minimal :
1 Unit
Pengiriman :
7 hari sejak pembayaran
Lokasi :
DKI Jakarta - Jakarta Barat
Dilihat :
154 Kali
Update Terakhir :
24-10-2016 13:12
Dapatkan Spesifikasi Harga DIGITAL VIBRATION MACHINE METER Produk Terbaik dari
PT. DUA BELAS BERSAUDARAA ALAT UJI AIR, UDARA, MAKANAN
